Description

This is a equivalent to Hypro D30 Pump

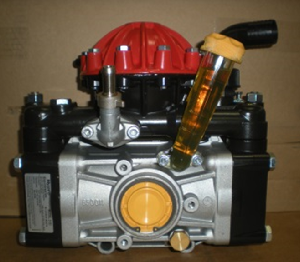

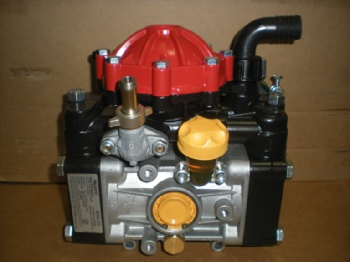

550 RPM – Semi-Hydraulic Two Diaphragm Pump

SP – Single shaft w/3 or 6 threaded holes or, in other models cylindrical & key shaft

DESCRIPTION

140°F – Max Water Temp | 35 mm – Suction | 1” – Outlet

• Alternating volumetric pumps with two semi-hydraulic diaphragms for use in the gardening or semi-professional agricultural sectors, trolley-mounted in combination with electric motors or internal combustion engines for gardening, and small sprayers for medium-pressure pesticide treatments in gardens, greenhouses, orchards or vineyards
• Parts in contact with pumped liquids in plastic-coated aluminium and body in aluminium
• Diaphragms in NBR, Desmopan or Viton
• Seals in NBR or Viton
• Die-cast casing with oil-immersed mechanism and clear plastic tank for visual level checking
• Pistons with ring for a more efficient “oil cushion” system to protect the diaphragm
• New-design diaphragm cut-out system to prevent contact tearing even in heavy-duty operating conditions
• Spherical sector profile valves for lower flow resistance and improved volumetric efficiency

SPECIFICATIONS
